The day finally came to get my boat off its keel-blocking and stands and onto the bright blue boat trailer. With lots of help from my friend Paul (the boat's previous owner), especially with the welding part, the trailer sits ready to receive the load. A fixed-keel sailboat trailer has to do two things: support the weight of the boat on the keel (the pressure-treated keel-rest in the middle) and keep the boat from tipping over while standing and driving (the steel tubes braced in two directions; the tubes are from old staging sections. We're always recycling). On the steel tubes will go big threaded screws with a plywood pad on them. When I have the time I'm going to paint the support stands.
The trick is to get a tippy boat on to a trailer without tipping it over.
First, you have to jack the boat up so it is at roughly the same height as the trailer, then pull the trailer as close and as straight up to the boat as possibly. Next, more jacking, and lifting by the boat stands, pulling the trailer back etc. When the keel is resting partially on the trailer, its time to put the truck in neutral, rig up some beefy come-a-longs and actually drag the trailer under the boat. This is possibly until most of the boat's weight actually rests on the trailer, then the come-a-longs actually drag the boat onto the trailer.
With some sweat, patience, and proverbial and actual elbow grease, a 19.5 ' 3000 lb boat can be safely deposited on a custom trailer. Bought retail, a custom trailer like this would cost in excess of $3500. Not including time for labor, I have roughly$500 into this one. Including labor, its probably more like $1500, still a pretty good value

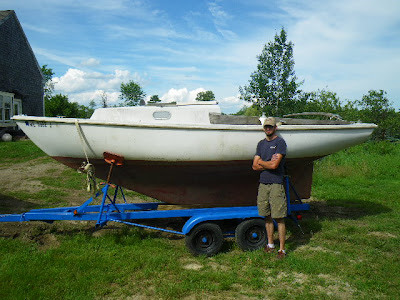

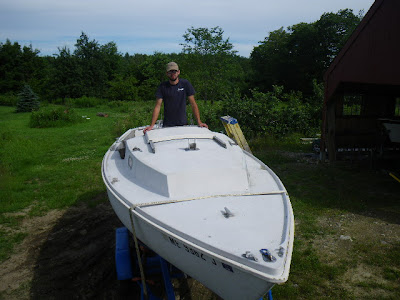

It almost looks like its sitting too far back, but the center of weight is almost exactly between the two axles, right where it should be. Its actually sitting a little heavy on the front. And from the front.
Despite appearances, she's not quite ready to take a dip. First, the trailer needs some kind of stabilizing shock absorbers to counter the oscillating bounciness of the coil springs (its a 1960's era chassis). Second, I have a new hitch coupling. Third, as you can see there is no tongue jack. Fourth, like in the previous post about sailboat launching, It needs a little wheel on the tongue to let it down into the water far enough for floating. All that is just for the trailer to be safe and functional. The to do list on the boat is a mile long, but not all of it is necessary for a few day-sails.
This afternoon we're going sailing again on Paul's boat. We'll probably just bop around Rockland, Rockport, Camden area.
